Radium Fuel Rail Nissan KA24DE

This fuel rail features three ports that are tapped for 8AN ORB (ends and bottom)
It also has one 1/8 NPT port (top)

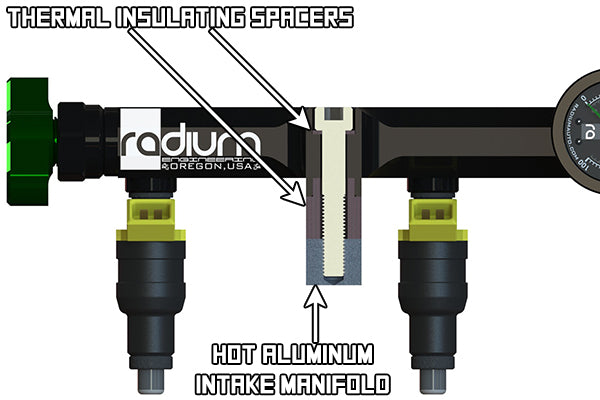

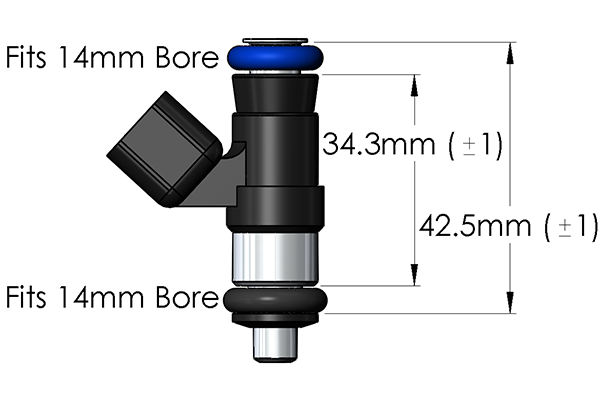

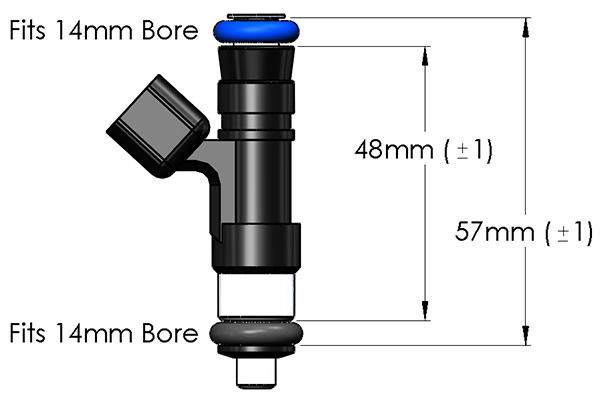

The kit includes two sets of thermal insulating spacers (shown above in the kit contents) to suit either 48mm or 34mm height injectors. Injectors MUST have 14mm O-rings top and bottom.

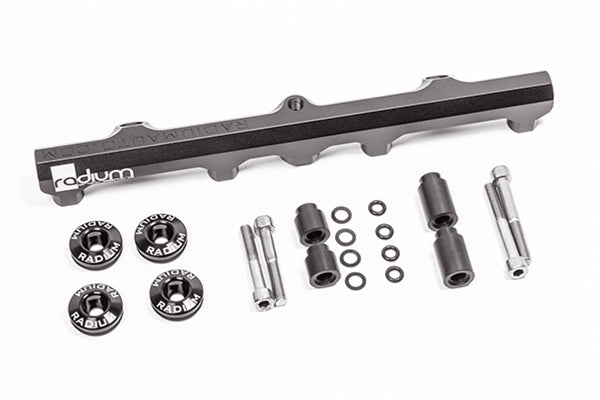

Included

-Black Anodized Aluminum Fuel Rail
-Thermal Insulating Spacers, Short (x2)
-Thermal Insulating Spacers, Tall (x2)
-Thermal Insulating Washers (x2)
-Radium 20-0160, 30mm Injector Seats (x4)
-Stainless Steel Mounting Bolts, Short (x2)
-Stainless Steel Mounting Bolts, Tall (x2)

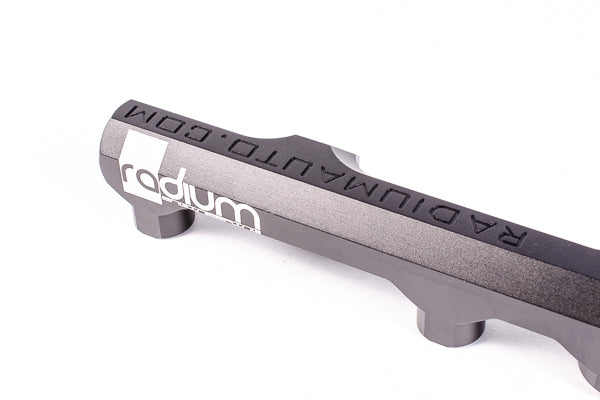

The rail is extruded and CNC machined from solid 6063 aluminum and black anodized for a high quality surface finish.

Manufactured with a large 0.69" internal bore, the fuel rail can support all any engine power requirements. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed injectors, allowing the use of a wide variety of aftermarket fuel injectors available on the market.
This kit is compatible with E85

The fuel rail has four 8AN ORB ports that can be used for fuel inlet, outlet or for plumbing option accessories. All unused ports must be plugged.

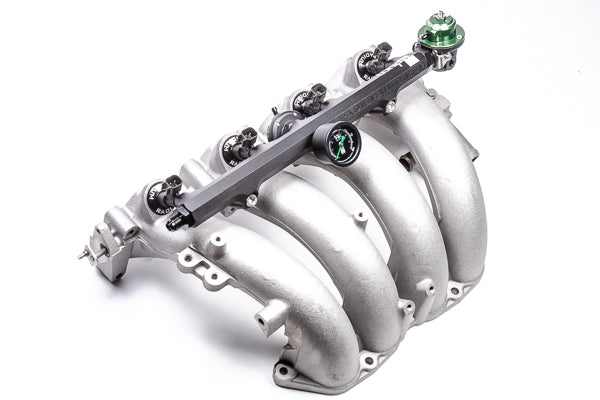

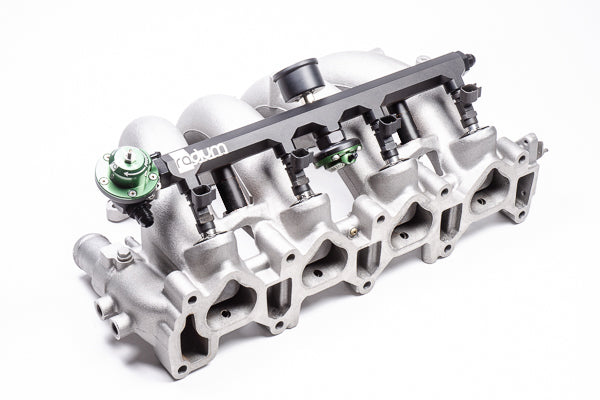

The OEM Nissan intake manifold is shown above. If planning to use with an Xcessive intake manifold, please note that the fuel rail may need to be shimmed to the proper height depending on fuel injectors used. Also, the aluminum injector seats included in this fuel rail will not be used.
