Radium Fuel Rail FR-S / BRZ / GT86

COMPATIBILITY
12-21 Toyota GT86
2022+ Toyota GR86
2012+ Subaru BRZ
12-16 Scion FR-S

The fuel rail end ports are tapped for 8AN ORB and the center port is tapped for 6AN ORB.

The Radium Engineering fuel rails are designed for the engine found in the Subaru BRZ (FA20D), Scion FR-S (FU-GSE), and Toyota 86 (4U-GSE).

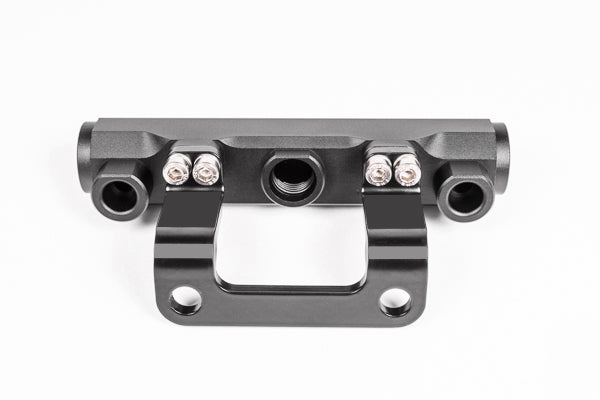

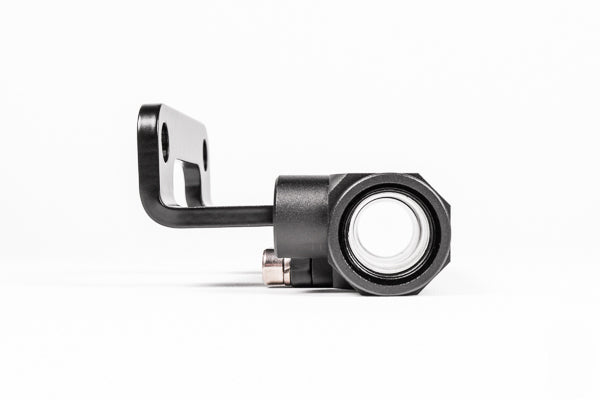

Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. The left/right rails are identical and feature anodized aluminum bodies and mounting brackets.

If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating ‘OEM equivalent’.

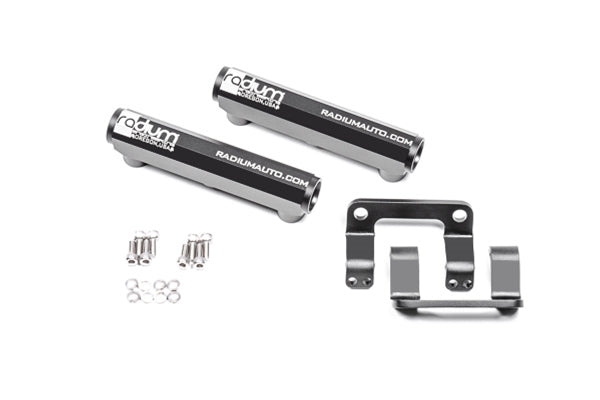

Just fuel rails and mounting brackets. Fittings and adapters sold separately. This option is ideal for users wanting to do their own custom lines and plumbing

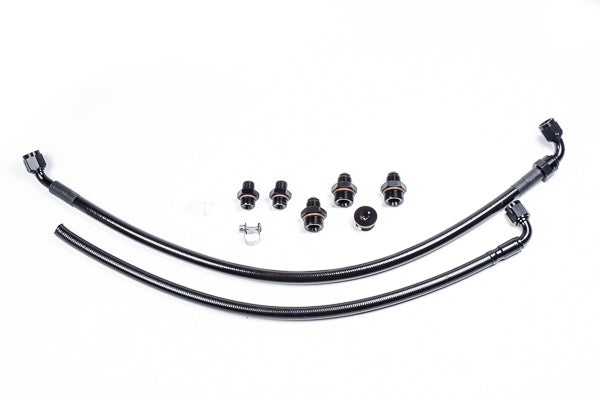

The plumbing kit includes the items shown in the image allow easy hookup to the factory feed line. Has all the parts needed to complete the fuel rail installation. The PTFE hoses are resistant to all fuel types.
