Radium High Flow Fuel Filters

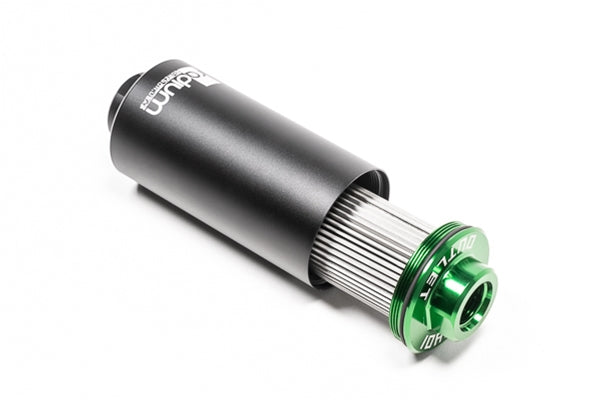

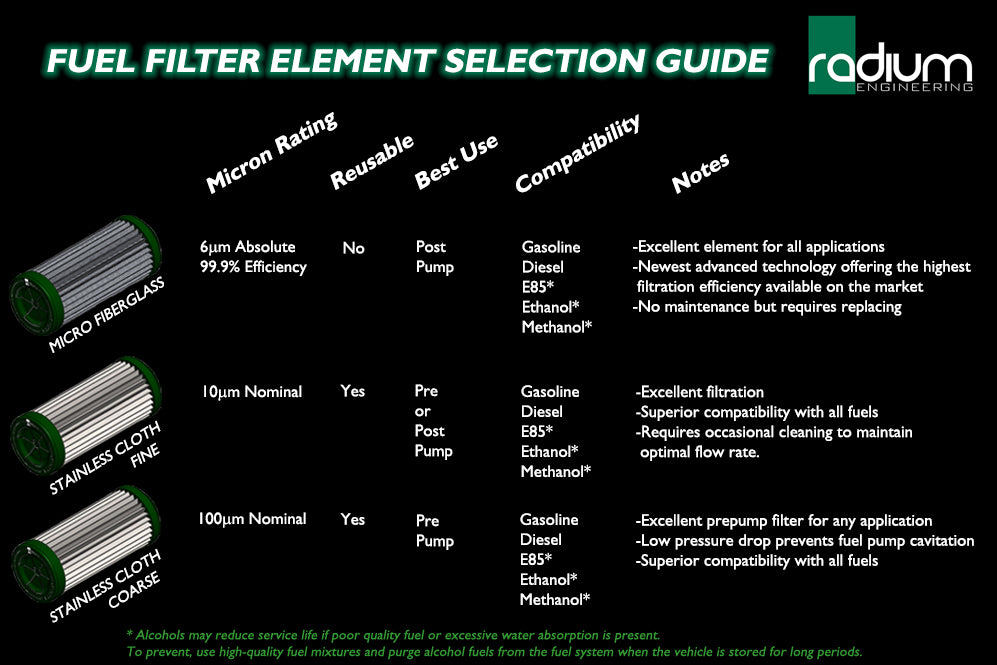

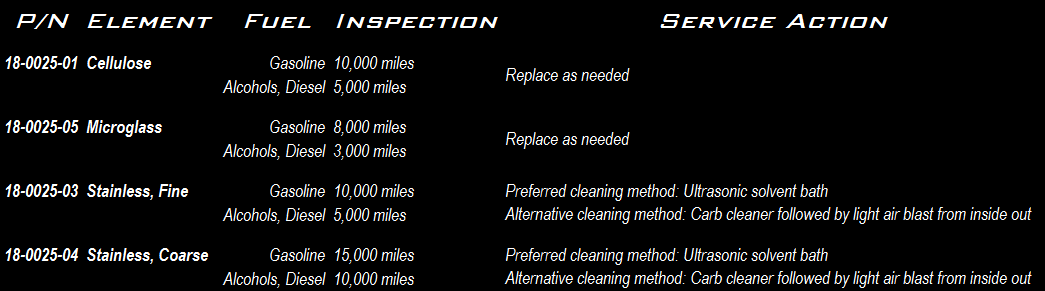

The Radium Engineering universal fuel filter is a perfect match for any application needing high flow and industry-leading filtration.  Radium Engineering uses one of the largest filtration elements in the industry. This translates into a long service life and minimum flow loss, making this filter perfect for low and high-horsepower applications. The filter can be completely disassembled for servicing and replacement elements are available. Stainless steel mesh elements can be cleaned and re-used, while the microglass element must be replaced at the end of it's service life. The filter is designed for EFI fuel pressures and can be safely used on a high pressure fuel feed line.

RADIUM IN-HOUSE TESTING
Burst Pressure: 750psi

The fuel filter is constructed with a 3 piece body that is CNC machined from 6061 aluminum and Type-II anodized for maximum corrosion resistance. The end caps are sealed to the body with FKM O-rings.

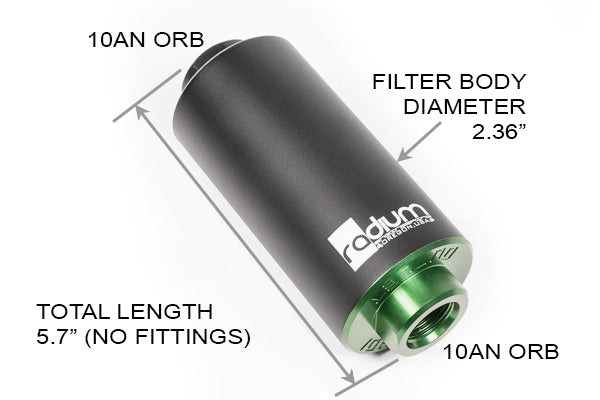

Both removable end caps feature large -10AN ORB female threaded ports for high flow plumbing. Radium offers a large selection of adapter fittings to connect up to a variety of fuel hose types and sizes.
